CAB01147 Branching Harness (1-2) 100cm

Code: CAB01147
Trane CAB01147 Wire Harness; Branching, Male To 2 Female 39.37 Lg

In Stock
GSD HVAC Technologies 100% Original100% ORIGINAL
GSD HVAC Technologies Order Delivery3-4 DAYS DELIVERY
GSD HVAC Technologies WarrantyWARRANTY

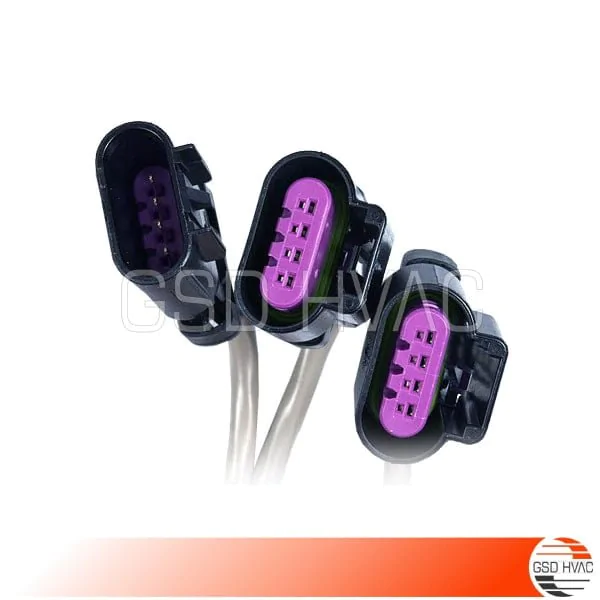

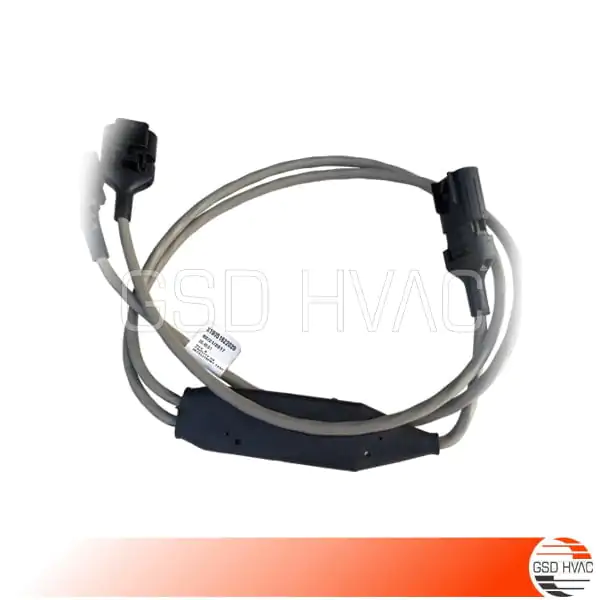

Trane CAB01147 Wire Harness; Branching (1-2) 100cm (X19051622020)

Trane Wire Harness; Branching CAB01147 details; Pluggable Connector System

  • Trane Chiller / York Chiller Wire Harness; Branching, Male To 2 Female 39.37″ Lg Cable Connector
  • Original Trane OEM Components
  • Trane Part Number: CAB01147
  • Model Number: X19051622020 / X19051622-020
  • Commonly Used on Trane CGAM, CXAM Scroll Chillers, CVHE, CVHG, CVGF Centrifugal Chillers, RTAC, RTAF, RTHD, RTWD, RTUD Screw Chiller Models
  • Replaces / Supersedes: CAB-1147, CAB1147

Chiller documentation for Branching Harness (1-2) 100cm can be downloaded from below links;

New CAB01147 Branching Harness (1-2) 100cm connector system;
  • Aesthetically pleasing.
  • Automotive industry grade.
  • Sealed connector system.
  • Easier connector for factory and field.
  • Repeated manual dis-connection and re-connection allowed.
  • No special tools required with new system.
  • Supports take apart machines, supports water box removal, supports unit bus troubleshooting circuit breakdown.
  • Has plug to flat wire adapters available for new LLIDs with plugs to connect to old comm bus. Or, old LLIDs can be connected to new comm bus.
  • Branching Harness CAB01147 Okay to paint.

Additional information

Weight 0.5 kg
Dimensions 20 × 15 × 7 cm
Unit Brand

Trane, York

Ünite Modelleri

RTHD Evo Series R™

Product Group

Cables and Connectors
