KIT16112 Microchannel Coil Repair Kit

Code: KIT16112

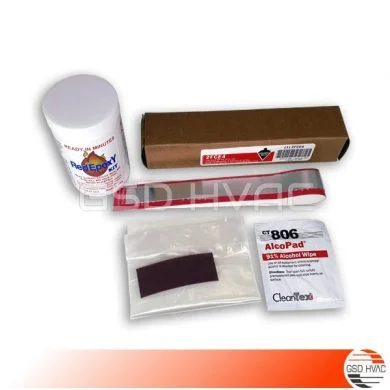

Trane KIT16112 Microchannel Coil Repair Kit
Trane KIT16112 Microchannel Coil Repair Kit
Microchannel Coil Repair Kit Trane KIT16112

Microchannel coils are considerably more robust in design than tube and fin condenser coils, however they are not indestructible. When damage or a leak occurs in the field, it is possible to temporarily repair the coil until another coil can be ordered. If the leak is found to be within the tube area of the coil, a field repair kit (KIT16112) is available through the GSD HVAC parts center. Because of the all aluminum construction and aluminum’s high thermal expansion rate, a leak located at or on the header assembly is considered irreparable..

In Stock
Add to quote
GSD HVAC Technologies 100% Original100% ORIGINAL
GSD HVAC Technologies Order Delivery3-4 DAYS DELIVERY
GSD HVAC Technologies WarrantyWARRANTY
Share (2)
Total: 1 Total: 0 Total: 1 Total: 0 Total: 0 Total: 0

Description

FurTrane KIT16112 Microchannel Coil Repair Kit

  • Trane Microchannel Coil Leak Repair Kit
  • Original Trane Components
  • Trane Part Number: KIT16112
  • Model Number: X18100703010 / X18100703-010
  • Microchannel Coil Parts No: COI1684E, COI1685E, COI1943E, COI1944E
  • Commonly Used on Trane Conquest, Flex2O™,  Flex II, Sintesis™ Advantage, Sintesis™ Balance, Sintesis™ Excellent, Sintesis™ Prime Chiller Models.
  • Replaces / Supersedes: KIT-16112

Microchannel coils are an all aluminum coil that have been successfully used in the automotive industry for many years, and is now being applied in the HVAC-R industry. Microchannel technology is an entirely new condenser coil design for air cooled (direct expansion) equipment. The all aluminum construction of microchannel coils consist of tubes, headers and ribbon fins that are all brazed together in a controlled air automated brazing furnace. This automated brazing process dramatically reduces the number of brazed joints that are typically seen with the traditional tube and fin condenser coils. Furthermore, their compact all aluminum construction also helps to reduce the unit’s weight improves recyclability and minimizes galvanic corrosion.

Key advantages of Microchannel coils:
  • Smaller coil, less refrigerant, same cooling capacity.
  • Serpentine louvered fins transfer heat more efficiently.
  • Small tube/channel size reduces refrigerant volume.
  • Potential charge reductions from 30%-50% depending on unit configuration.
  • Ability to claim LEED credit for reduced refrigerant per ton.
  • Brazed fin/tube/header creates a more rigid structure compared to tube and fin condenser coils
  • Extremely durable during shipping and handling
  • Because construction consist of rigid tubes, there are no thin fin material to comb out.
  • No new requirements for use within R-410A equipment to charge, recover, recycle or pull a vacuum on refrigerant system.
  • Compact all-aluminum microchannel coils help to reduce the unit weight.
  • All-aluminum construction improves recyclability and minimizes galvanic corrosion.
  • Strong aluminum brazed structure provides better fin protection.
  • Flat streamlined tubes make microchannel coils more dust resistant and easier to clean.

Documentation download links for the Repair Kit and for the Trane Chillers Models;

Additional information

Weight0.5 kg
Dimensions20 × 20 × 12 cm
Unit Brand

Trane

Ünite Modelleri

Balance™, Flex II, RTAE Stealth™, Sintesis™ Advantage, Sintesis™ Balance, Sintesis™ Excellent, Sintesis™ Prime

Product Group

Repair Kit
