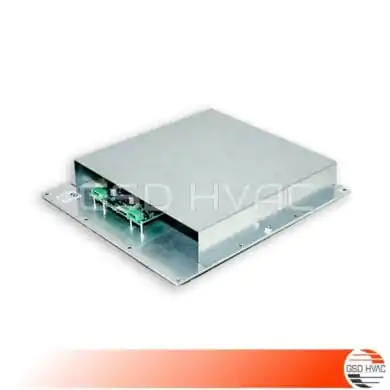

MOD01054 Module; CLD2, Nema 4 Rating

Description

Trane MOD01054 Module; CLD2, Nema 4 Rating (X13650782047)

Chiller MOD01054 Module; CLD2, Nema 4 Rating Local Human Interface details;

• Trane Chiller Adaptive Control Module, Chiller Controller, Controls Interface, CLD2, Clear Language Display with Keypad, Nema 4
• Original Trane OEM Components
• Trane Part Number: MOD01054
• Model Number: X13650782040 / X13650782047
• Commonly Used on Trane Series R™ Screw and CenTraVac™ Chiller Models
• Replaces / Supersedes: MOD0021E, MOD-21E, MOD00870, MOD-870, MOD-1054

Chiller and CLD2 Chiller Control System documentation download links;

• CVGF Chiller Model Adaptive Module; CLD2 (Product Catalog, Sales Brochure, Installation Operation Maintenance)
• CVHG Chiller Model Adaptive Module; CLD2 (Product Catalog, Sales Brochure, Installation Operation Maintenance)
• RTHB Chiller Model Adaptive Module; CLD2 (Product Catalog, Sales Brochure, Installation Operation Maintenance)

Adaptive Control Module – Local Human Interface LCD

This CLD2 chiller control is composed of eight electronic modules, which each have their own 115V or 24V power supply and communicates with each other via a serial link. The names of the modules are linked to their functions.

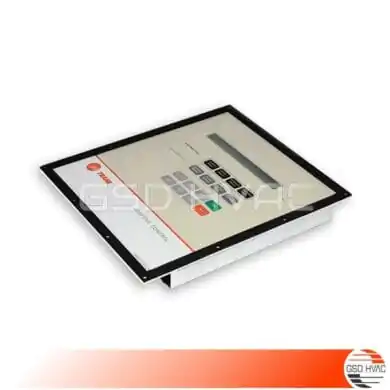

Operator’s Interface MOD01054, Digital Display – The display of control, regulation and operating parameters, diagnostics, and error messages is a 2-line, 40-character, liquid-crystal display. The display has a LED backlight to read in low-light conditions and to warm up the display under low ambient temperatures. When powering up the system, the display is not lit and the message [SELF-TEST IN PROGRESS] is displayed. The screen can display error codes, settings of various set points, specified temperature and pressure values, and the status of operating parameters and options.

Keyboard A 16-key touchpad allows both navigation between menus and the modification of parameters and set points.
