MOD01421 Module; CPM Base With Option

Description

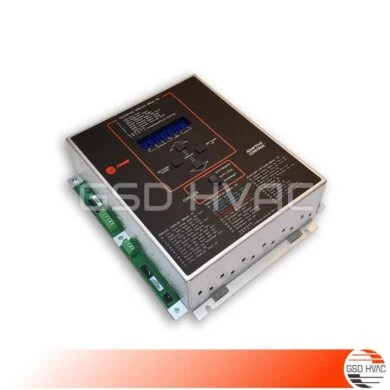

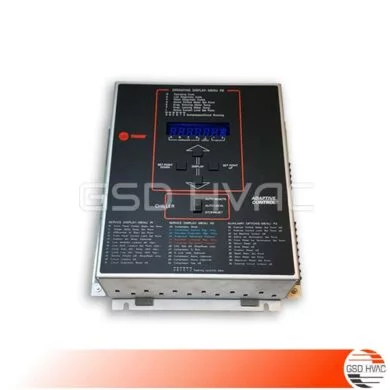

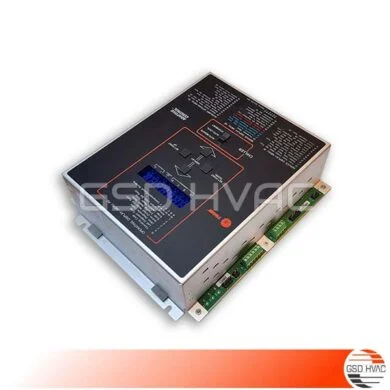

Trane MOD01421 Module, CPM Base With Option (X13650362-06)

Control Module Trane MOD01421 CPM Base With Option details;

• Trane Chiller Module, CPM Base Controller with Options

• Original Trane OEM Components
• Trane Part Number: MOD01421
• Model Number: X13650362-06 / X13650362006
• Commonly Used on Trane Series R™ Chiller Models.
• Replaces / Supersedes: MOD-1059, MOD1059, MOD01059, MOD-1421, MOD1421, MOD01421

Chiller and CPM Base Controller documentation can be downloaded from below links;

• RTAA Chiller Model Control Module (Product Catalog, Sales Brochure, Installation Operation Maintenance)

Operator Interface Controls

There are six menus, four of which are shown on the operator interface panel and two factory displays, which are described later in this section. The menus are numbered as follows:

• Operating Display – Menu 0
• Service #1 Display – Menu 1
• Service #2 Display – Menu 2
• Auxiliary Options Display – Menu 3
• Factory Display – Menu 4
• Factory Display – Menu 5
