MOD01424 Module CPM-Unit Regulation

Description

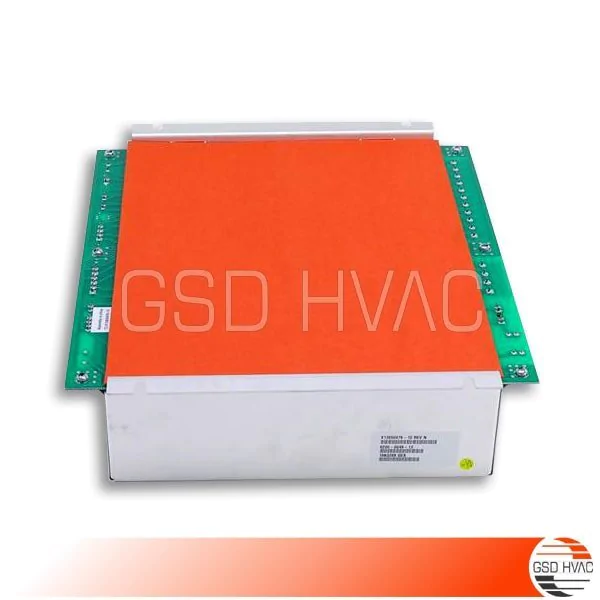

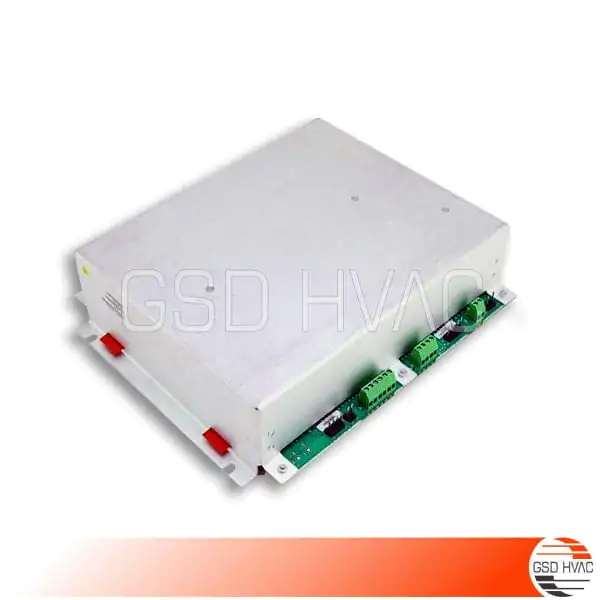

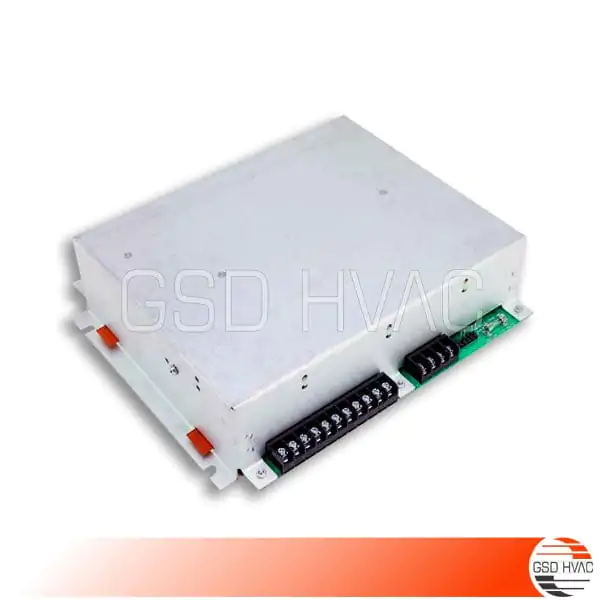

Trane MOD01424 Module CPM-Unit Regulation (X13650476100)

Trane CPM-Unit Regulation Module, Controller MOD01424 Details; (Chiller Protection and Management – Safety, protection, and control of the chiller)

• Trane Chiller 70-125 Ton CPM-Unit Regulation Module, Controller used with Adaptive Control Module
• Original Trane OEM Components
• Trane Part Number: MOD01424
• Model Number: X13650476100 / X13650476010
• Commonly Used on Trane RTAA, RTAB, RTAD Air-Cooled, RTXA, RTWA, RTWB Water-Cooled Screw Chiller Models
• Replaces / Supersedes: MOD00793, MOD01060, MOD0119E, MOD1424, MOD-1424

Chiller documentation for CPM-Unit Regulation Module can be downloaded from below links;

• Trane Chiller Model RTAA CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTAB CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTAD CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTWA CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTXA CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)
• Trane Chiller Model RTWB CPM-Unit Regulation Module (Product Catalog, Brochure, IOM)

The instructions are given as a guide to the operation of the controller(s) mounted on Trane RTAA, RTAB, RTAD Air-Cooled, RTXA, RTWA, RTWB Water-Cooled Screw Chiller Models. They do not contain full service procedures necessary for the continued successful operation of this equipment. The services of a qualified technician should be employed through the medium of a maintenance contract with a reputable service company. Read this manual thoroughly before unit start-up.
