Description

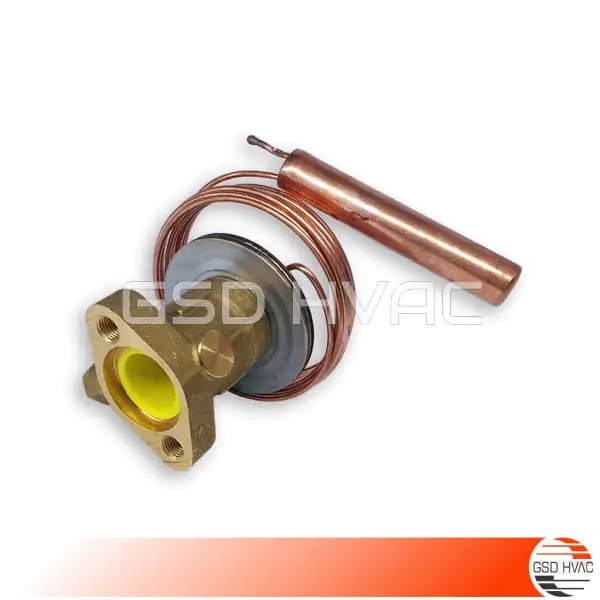

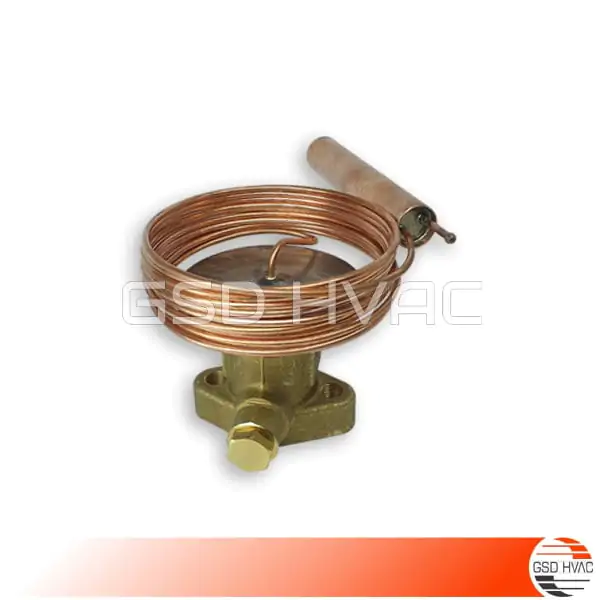

Trane VAL05959 Expansion Valve (X05409 GT-5773)
Valve; Expansion Trane VAL05959 details;
- Trane Chiller hermostatic Expansion Valve, .88 ODS x 1.13 ODS
- Original Trane OEM Components
- Trane Part Number: VAL05959

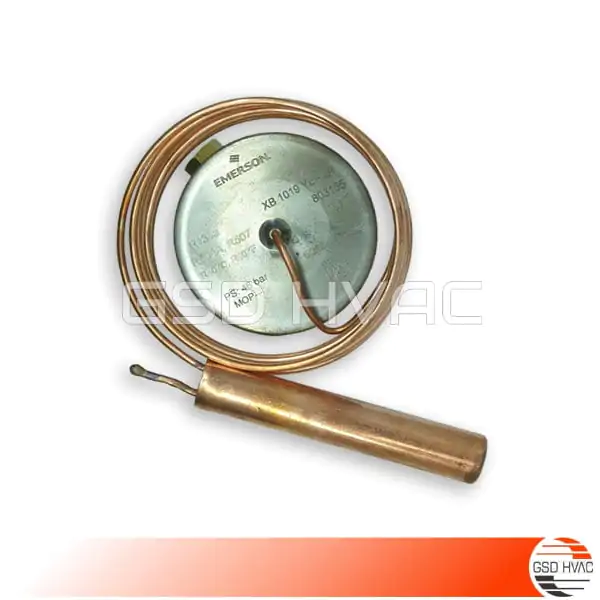

- Model Number: X05409 GT-5773 / X05409GT5773 / XB 1019 YL – 2A
- Refrigerant Gaz: R134A, R404A, R507, R407C, R407F
- Commonly Used on Trane RTHD Water-Cooled Screw Chiller Models
- Replaces / Supersedes: VAL05959, VAL-5959
Chiller documentation for the Termostatic Valve; Expansion are as below;

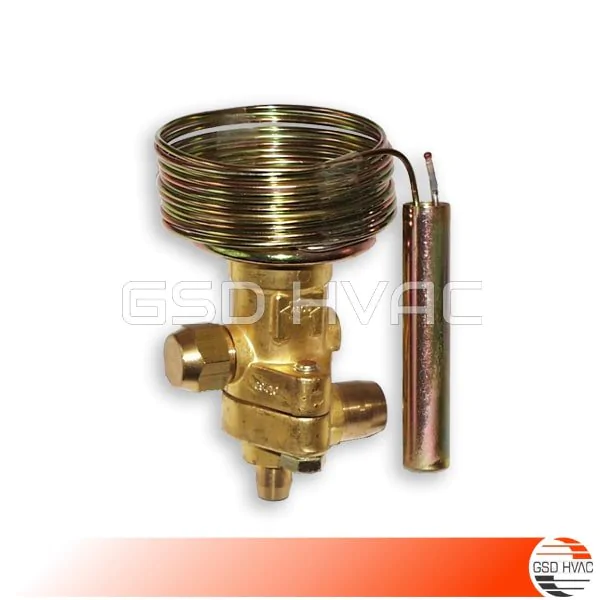

Thermo™-Expansion Valves
Alco Control Take-apart Thermo™ – Expansion Valves are designed for air conditioning, chillers, rooftops, close control units. Additionaly, A/C transportation, heat pumps, industrial cooling process, refrigeration and numerous special applications are also equipped. The new Take-A-Part expansion valves are ideal for those applications requiring flexibility in selection of capacity. And excellent stable superheat control under varying operating conditions such as high and low head pressure, wide load variation and partial load down to 10%. Valves with XB power elements can be applied in systems with Copeland Digital Scroll™ Compressors.
Features
- Take-apart design consists of power element, cage and flange
- 46 bar maximum working pressure with XB power element
- 17 cage assemblies provide a wide capacity range (1.3 to 209 kW, R404A)
- XB long life laser welded stainless steel power element resists corrosion
- Large diaphragm eliminates disturbances to the valve and provides smoother and consistent valve control over wide range of operation
- Constant superheat across a wide application range
- Tailored charges for different applications
- T-Series: universal expansion valve for evaporating temperature down to -45°C
- ZZ-Series: expansion valves for evaporating temperature down to -100°C
- L / 935-Series: desuperheating of two stage compressors or hot gas bypass applications
- Flanges: brazing ODF/ODM connection with straight through and angle style configuration
⚡ Compatible Trane Chiller Models & Official Documentation
Verified OEM fitment for the following Trane chiller series. Click any model to view full technical specifications, wiring schematics, and download official IOM manuals (PDF):
The VAL05959 Expansion Valve (Part Number: VAL05959) is a premium, high-performance replacement component designed specifically for commercial HVAC and chiller systems. Whether you are conducting routine maintenance or repairing your Trane equipment, this Expansion Valves guarantees uncompromised reliability. At GSD HVAC, we maintain an extensive inventory of tested, OEM-grade spare parts to keep your climate systems operating at peak efficiency. Available now for expedited global shipping.
