FS80-C Flow Switch

Code: CNTFS80C

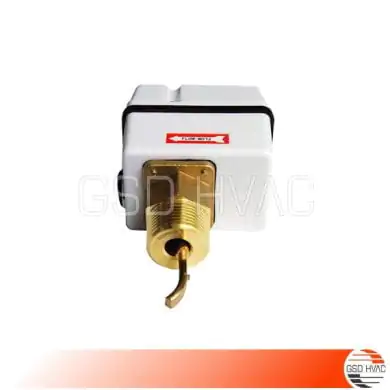

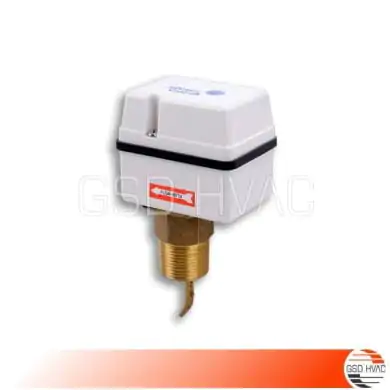

Johnson Controls FS80-C Water Flow Switch

In Stock
GSD HVAC Technologies 100% Original100% ORIGINAL
GSD HVAC Technologies Order Delivery3-4 DAYS DELIVERY
GSD HVAC Technologies WarrantyWARRANTY

Description

Johnson Controls FS80-C Flow Switch

Johnson Controls FS80-C Flow Switch details;

  • Chiller Systems FS80-C Water Flow Switch
  • IP Rating: IP55
  • Maximum Fluid Pressure: 15 Bar
  • Fluid Temperature: -25°C ~ 110 °C
  • Electrical Rating: 220V AC/8A
  • Commonly Used on the Following Systems: Trane Chillers, YORK Chillers, Carrier Chillers. Daikin Chillers, Mitsubishi Chillers, McQuay Chiller, Dunham Bush Chillers, LG Chillers, Climaventa Chillers, Clivet Chillers, Rhoss Chillers, Ciat Chillers, Systemair Chillers …

FS80-C Flow Switch responds to fluid flow in lines carrying water, ethylene glycol, or other Non-hazardous fluids. And uses a variety of paddle sizes to respond to fluid flow rates in applications with pipe sizes greater than 1-inch trade size.

Single-Pole, Double-Throw (SPDT) flow switch that can be wired to energize one device and de-energize another device powered from the same source when liquid flow either exceeds or drop below the set flow rates.

This Flow Switch is designed for use only as operating controls. Where an operating control failure would result in personal injury and/or loss of property. It is the responsibility of the installer to add devices (safety, limit contrlos) that protect against, or systems (alarm, supervisory systems) that warn of, control failure.

Use FS80-C Flow Switch in application with fluid pressures up to 1.5MPa. A typical application for FS80-C flow switch is to shut down the refrigeration commpressor on a fluid chiller system if flow stops, reducing chances of chiller freeze-ups.

Additional information

Weight 1 kg
Dimensions 20 × 20 × 8 cm
Unit Brand

Carrier, Climaventte, Clivet, Daikin, Lennox, McQuay, Rhoss, Trane, York

Ünite Modelleri

CGAF, CVGF – CenTraVac™, CVHE/CVHG – CenTraVac™, GVAF, GVWF – XStream™ eXcellent, RTAC – Series R™, RTAD – Series R™, RTAF – SINTESIS™ PRIME, RTHA, RTHB, RTHC, RTHD Evo, RTHF, RTWA, RTWB, RTWF

Product Group

Flow Switch, Pressure Controls
