MOD0185E PCO3 Control Module

Description

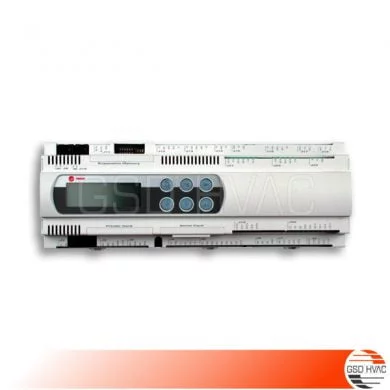

Trane MOD0185E PCO3 Control Module  (*27201135042)

Trane Tracer™ CH532 Control Module PC03 Medium – Configurated – Version Hard CEM, MOD0185E details;

• Trane Tracer™ CH532 PCO3 Control Module, Chiller Controller, Controls Interface for medium size scroll chillers
• Original Trane OEM Components
• Trane Part Number: MOD0185E
• Model Number: *27201135042 / X27201135042
• Commonly Used on Trane AquaStream 2 CGAN200 – CGAN490, CXAN200 – CXAN490, CGAL200 – CGAL490 Scroll Chiller Models
• Replaces / Supersedes: MOD0147E, MOD0147R, MOD0165E, MOD-165E, MOD-185E, PC03TR0BL0

Trane Chiller and Tracer™ CH532 PCo3 Controller documentation can be downloaded from below links;

• Trane Chiller Model CGAN PCo3 Control Module (Product Catalog, Brochure, IOM, Tracer™ CH532)
• Trane Chiller Model CXAN PCo3 Control Module (Product Catalog, Brochure, IOM, Tracer™ CH532)
• Trane Chiller Model CGAL PCo3 Control Module (Product Catalog, Brochure, IOM, Tracer™ CH532)

Tracer™ CH532 Microprocessor control module with liquid crystal display operator interface controlling and indicating:

• Leaving water temperature
• History of the last 200 defaults
• Cold or hot water reset
• On/off scheduling
• Anti-freeze protection of evaporator, control defrost (CXAN)
• Remote control: dry contact for general fault
• Inputs for external water setpoint reset, auxiliary setpoint, and cooling/heating switch

Tracer™ CH532 User interface

• Alarm button – Used for displaying or manually resetting the alarms. The red LED lights up , when at least one alarm has been detected.
• Program button – Allows the various operating parameters to be set (safety parameters, thresholds).
• Escape button – Allows the return to default display.
• Downward and Upward arrows  – Allows management of currently displayed screen and setting of values of control parameters.
• Validation button – Allows to move from line to line in the currently displayed screen and to confirm the set data.
