VAL1095E Valve; Angle 1/4″ NPT

Code: VAL1095E

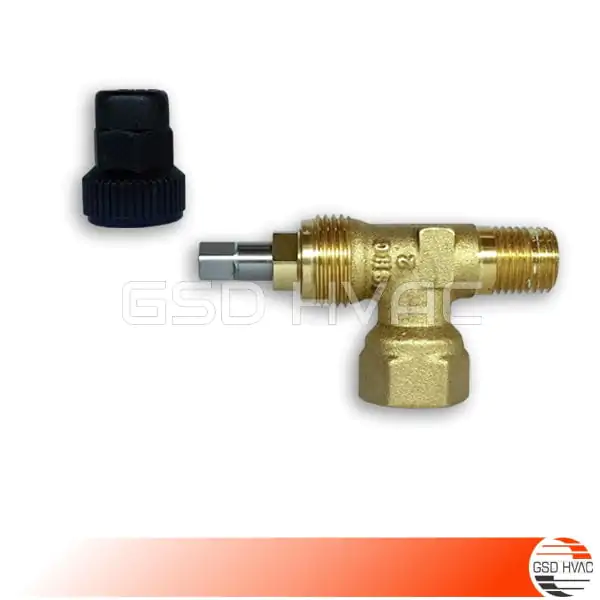

Trane Chiller VAL1095E Valve Angle 1/4 x 1/4 NPT (VAL0662E)

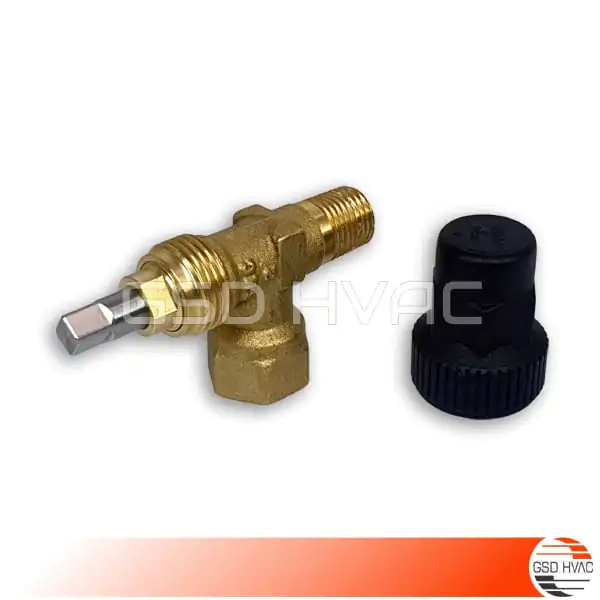

Trane Chiller VAL1095E Valve Angle 1/4 x 1/4 NPT (VAL0662E)

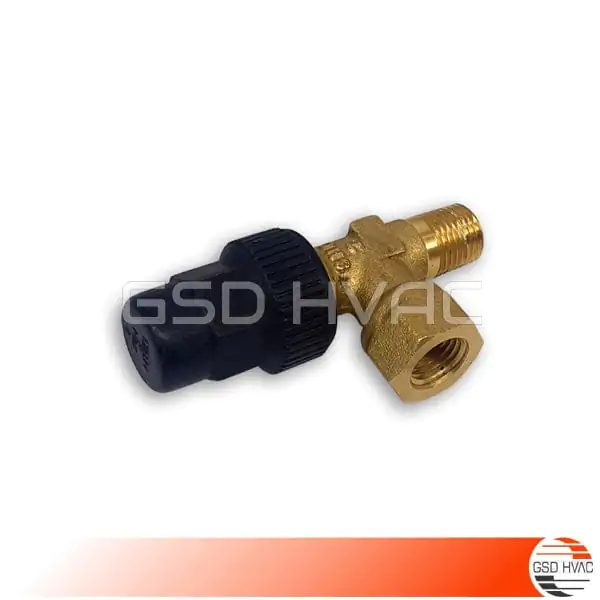

Trane Chiller VAL1095E Valve Angle 1/4 x 1/4 NPT (VAL0662E)
Trane VAL1095E Valve Angle

The gauge connection on these valves is not a Schrader valve. These valves must be opened to read the pressure. More importantly, they must be closed before removing the gauges.

In Stock
Add to quote
GSD HVAC Technologies 100% Original100% ORIGINAL
GSD HVAC Technologies Order Delivery3-4 DAYS DELIVERY
GSD HVAC Technologies WarrantyWARRANTY
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

VAL1095E Valve; Angle 1/4″ NPT

Valve; Angle 1/4″ NPT VAL1095E details;

  • Trane Chiller Valve Angle and Service Valve 1/4 NPTE x 1/4 NPTI
  • Original Trane OEM Components
  • Trane Part Number: VAL1095E
  • Commonly Used on Trane Series R™, Series E™ CenTraVac™, Sintesis™ Advantage, Sintesis™ Balance, Sintesis™ Excellent, Sintesis™ Prime, XStream™, XStream™ Excellent Chiller Models.
  • Replaces / Supersedes: VAL09862, VAL9862, VAL-9862, VAL0662E, VAL662E, VAL-662E, VAL11185

Trane chiller documentation download links for the Valve; Angle and Service Valve;

THREE DIFFERENT POSITIONS OF THE SERVICE VALVES:

Front seated position the valve stem is turned fully clockwise to effectively stop the flow of refrigerant vapour from the suction line union on the low-pressure side of the compressor and to the discharge line union on the high-pressure side of the compressor.

Back-seated position The valve stem is turned fully counter-clockwise to stop the flow of refrigerant vapour to the gauge port of the service valve.

Midway position The valve stem is turned either clockwise or counterclockwise to leave the valve unseated. Thus refrigerant vapour can flow from the suction line and also to the discharge line and at the same time pass through the gauge port, to the gauge hose and to the relevant pressure gauge.

The liquid shut-off valve may be located at the outlet of the receiver. It is a single-seating valve, i.e. it is either open or closed. On systems that do not have a receiver, the valve design will be similar to that of a suction or discharge service valve and will have a gauge connection. When closed or fully front-seated, this valve will stop the flow of liquid refrigerant from the condenser or receiver to the expansion device.

Additional information

Weight0.5 kg
Dimensions10 × 10 × 7 cm
